PCD Cutters for Floor Grinding
PCD cutters has high hardness and wear resistance,could be used for floor grinding,such as removing glues, epoxy, paint, and urethanes.
1. Product Introduction of PCD cutters for floor grinding

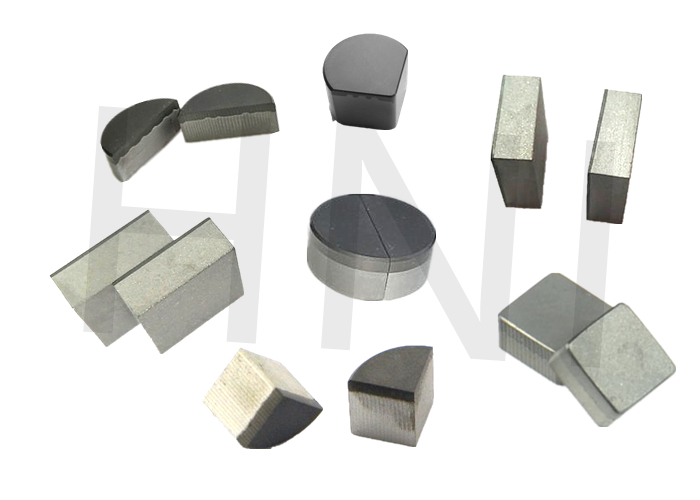

PCD cutters are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure. They have high hardness, wear resistance and impact resistance,mostly used for drilling bit,also are widely used in floor grinding,to remove glues, epoxy, paint, and urethanes.
2. Product Specification of PCD cutters for floor grinding

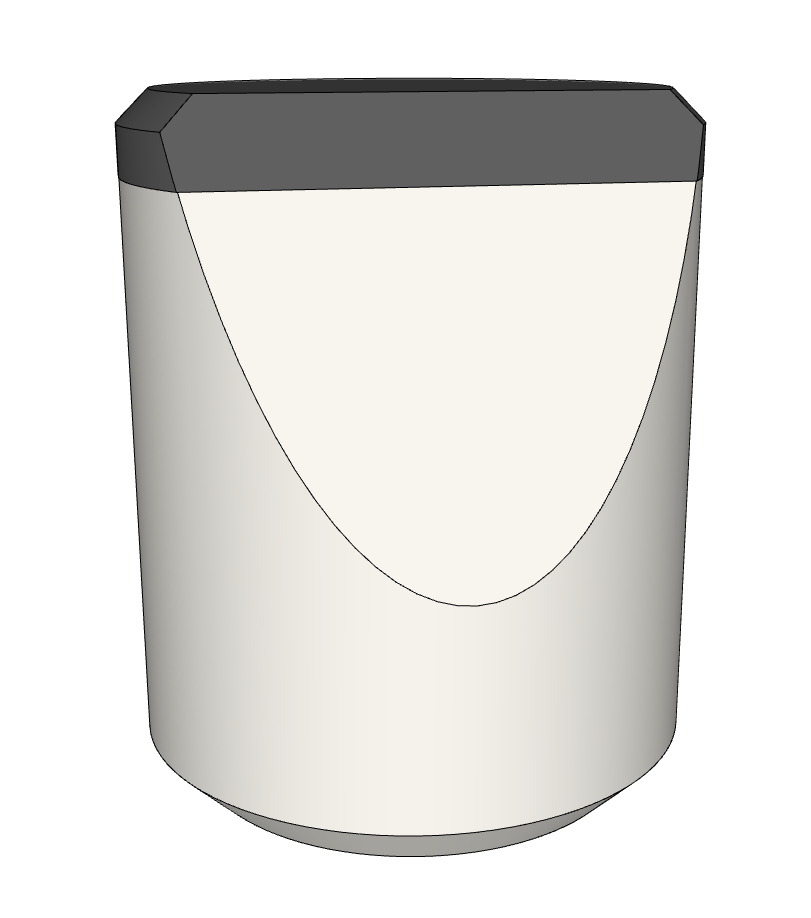

PCD cutter-Cylinder shape
| Size |
Diameter(mm) |
Height(mm) |
| 0804 |
8 |
4.53 |
| 0808 |
8 |
8 |
| 1004 |
10 |
4.53 |
| 1008 |
10 |
8 |
| 1304 |
13.3 |
4.53 |
| 1308 |
13.44 |
8 |

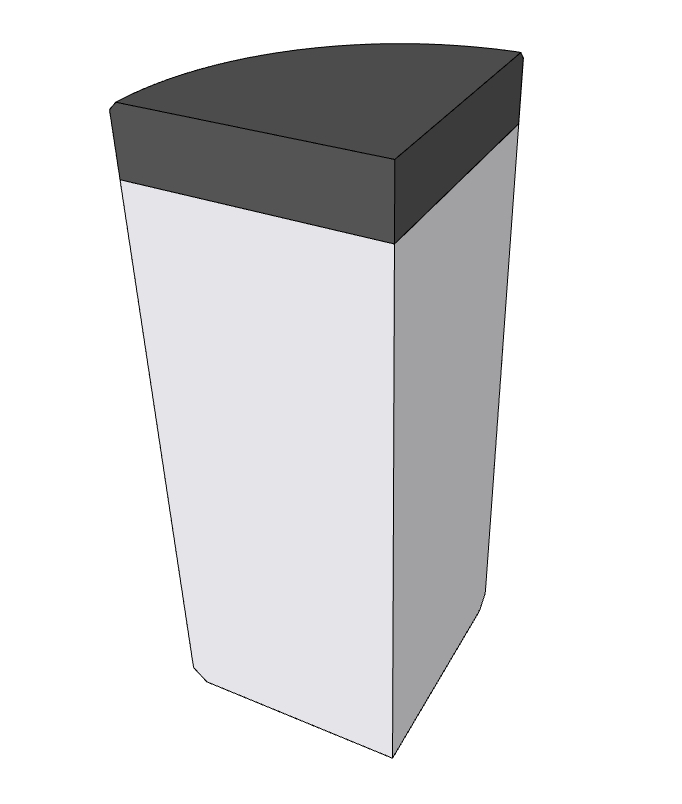

PCD cutter-Segment CUT
| Size |
Diameter(mm) |
Height(mm) |
Segment CUT |
| 1308 |
13.44 |
8.00 |
1/5 CUT |
| 1308 |
13.44 |
8.00 |
1/3 CUT |
| 1608 |
16.00 |
8.00 |
1/5 CUT |
| 1608 |
16.00 |
8.00 |
1/3 CUT |
3. Production Feature and Application of PCD cutters for floor grinding
High hardness
High wear resistance
Customized are available
For quick removal of any coatings, such as epoxy and glue from concrete floors as well as flattening bumpy concrete surfaces efficiently.

|
